A19 Shafts

This is a nitrogen strengthened Type 304 stainless steel. Corrosion resistance is superior to Type 304 and better than Aqualoy 17. Aqualoy 19 shafts have been proven to be successful in several types of boats including sports fisherman and pleasure crafts.
Manufacturer part number: AQUALOY-19
*
*
Inches
Fraction
*
$0.00 ;

Aqualoy A19 Marine Propeller shafts undergo more quality controls than any competing brand. These prop shafts are used in a wide variety of applications such as work boats, pleasure craft, naval vessels, and pumps. The Aqualoy® process produces a rounder, straighter, stronger shaft. All of our A19 shafts from 3/4" - 4" diameter are precision machined in our Mazak Nexus 350M CNC turning lathe to insure all machining is within .0005".

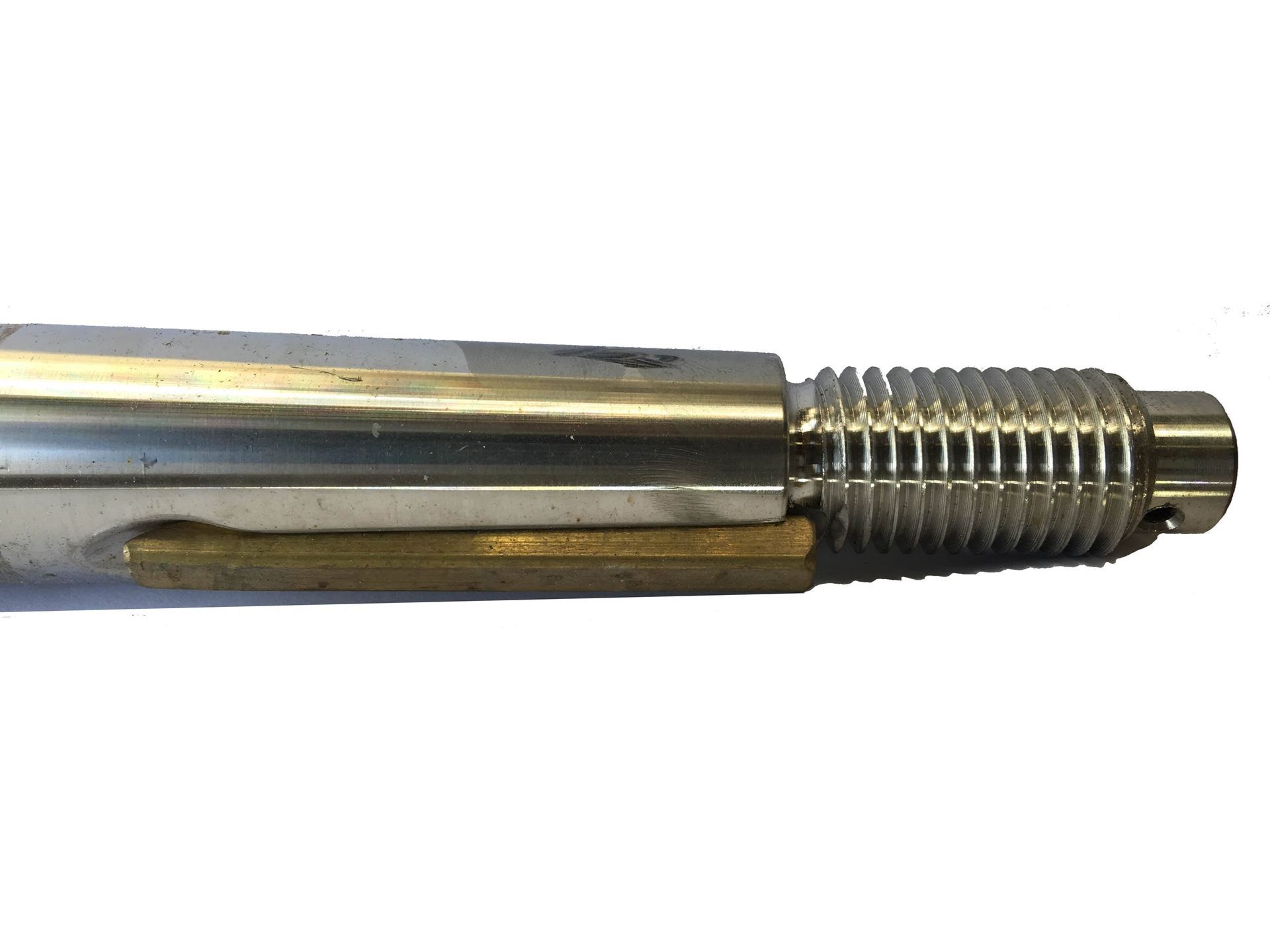

Single Tapered Shafts A19
All single tapered A19 stainless steel shafts will have a propeller taper machine according to SAE J755 specifications, unless other instructions are given. In addition to the propeller taper machining, a single square keyway will be machined for the coupling end of the shaft. The dimples for the set screws can only be machined with the coupling in place. If you purchase a coupling from us, there will be a $92.00 to fit and face the coupling to the shaft and during this process, the dimples for the set screws will be completed.

Double Tapered Shafts A19
All double tapered stainless shafts will have a propeller taper machine according to SAE J755 specifications, unless other instructions are given. In order for us to machine the coupling taper, we will require either a drawing of the coupling taper or the following dimensions must be specified(as there is not an SAE standard for coupling tapers and these tapers do vary); length of taper, small end diameter of taper, and length and size of threads.


Your Trusted Source for Stainless Shafting
Deep Blue Yacht Supply boasts a full service machine shop, with capabilities allowing for machining of stainless shafts up to 9” in diameter. As a testament to the master skill level of our machinists, many discerning yacht, boat, and facility owners across the globe have their A19 stainless shafts machined at Deep Blue Yacht Supply. Current lead time for the production of new custom A19 stainless shafts is 3-4 business days.

Custom Dimensions
Please note that our single-taper machining follows the SAE J755 specification.  In addition, our CNC engineers can provide a wide array of custom shaft dimensions.  For non-standard dimensions and double-tapered shafts, our engineers will be more than happy to review your dimensions to ensure the proper fit.

For diameters greater than 3", lengths greater than 108", or custom specifications, please feel free to contact our shaft specialists at 1-800-454-6960

Allow Deep Blue Yacht Supply's machine shop forge your new inboard propeller or pump stainless A19 steel shaft.  We ship our stainless shafts across the globe, and you will not find better pricing.  Order your new A19 stainless steel shaft today and save hundreds to thousands.



Aqualoy A19 Marine Propeller shafts undergo more quality controls than any competing brand. These prop shafts are used in a wide variety of applications such as work boats, pleasure craft, naval vessels, and pumps. The Aqualoy® process produces a rounder, straighter, stronger shaft. All of our A19 shafts from 3/4" - 4" diameter are precision machined in our Mazak Nexus 350M CNC turning lathe to insure all machining is within .0005".

Single Tapered Shafts A19
All single tapered A19 stainless steel shafts will have a propeller taper machine according to SAE J755 specifications, unless other instructions are given. In addition to the propeller taper machining, a single square keyway will be machined for the coupling end of the shaft. The dimples for the set screws can only be machined with the coupling in place. If you purchase a coupling from us, there will be a $92.00 to fit and face the coupling to the shaft and during this process, the dimples for the set screws will be completed.

Double Tapered Shafts A19
All double tapered stainless shafts will have a propeller taper machine according to SAE J755 specifications, unless other instructions are given. In order for us to machine the coupling taper, we will require either a drawing of the coupling taper or the following dimensions must be specified(as there is not an SAE standard for coupling tapers and these tapers do vary); length of taper, small end diameter of taper, and length and size of threads.


Your Trusted Source for Stainless Shafting
Deep Blue Yacht Supply boasts a full service machine shop, with capabilities allowing for machining of stainless shafts up to 9” in diameter. As a testament to the master skill level of our machinists, many discerning yacht, boat, and facility owners across the globe have their A19 stainless shafts machined at Deep Blue Yacht Supply. Current lead time for the production of new custom A19 stainless shafts is 3-4 business days.

Custom Dimensions
Please note that our single-taper machining follows the SAE J755 specification.  In addition, our CNC engineers can provide a wide array of custom shaft dimensions.  For non-standard dimensions and double-tapered shafts, our engineers will be more than happy to review your dimensions to ensure the proper fit.

For diameters greater than 3", lengths greater than 108", or custom specifications, please feel free to contact our shaft specialists at 1-800-454-6960

Allow Deep Blue Yacht Supply's machine shop forge your new inboard propeller or pump stainless A19 steel shaft.  We ship our stainless shafts across the globe, and you will not find better pricing.  Order your new A19 stainless steel shaft today and save hundreds to thousands.
