Duramax flanged bearing

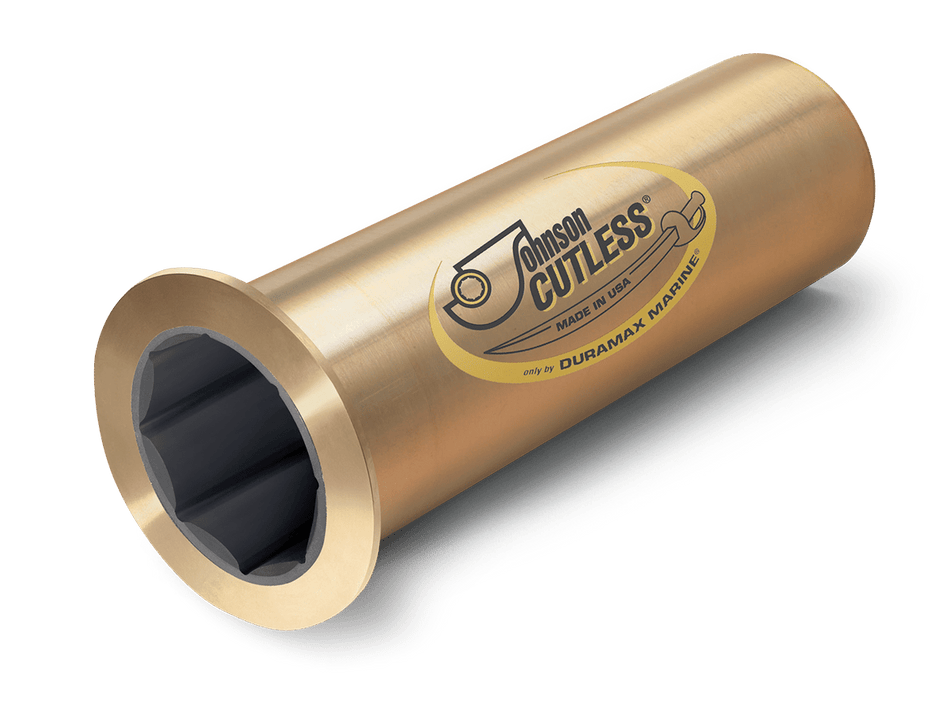

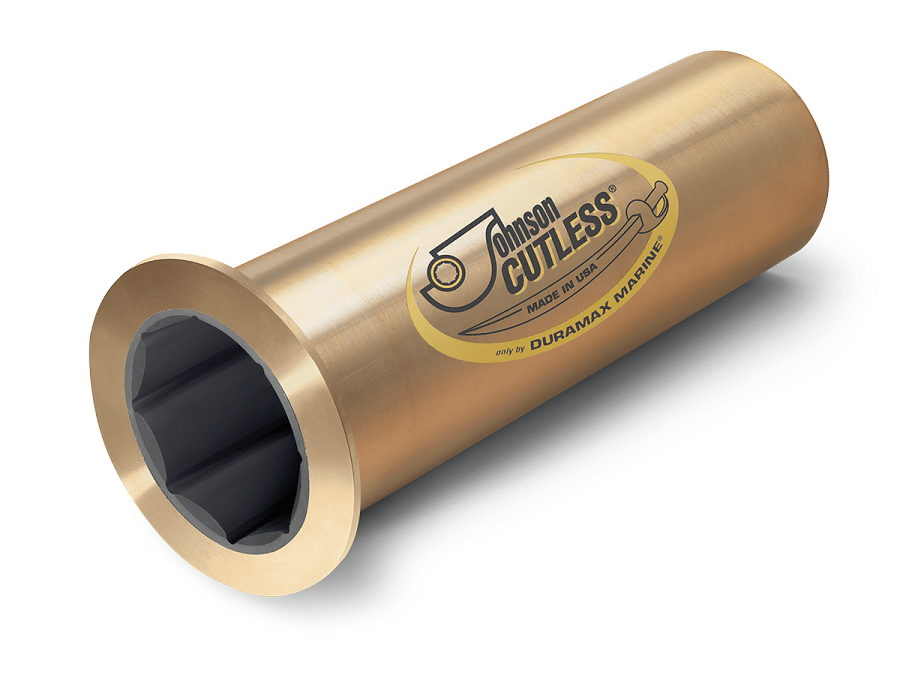

Johnson Cutless Flanged Type Water Lubricated Bearings are centrifugally cast naval brass with an integral flange for bolting to stern tube or strut housing to retain brearing and prevent rotation in housing.

Johnson Duramax  naval brass flanged cutlass bearings meet Military Specification MIL-B-17901B (ships) Class II Full-Molded Type.  Deep Blue Yacht Supply is the industry leader when it comes to providing Johnson Duramax marine flanged bearings. Secure your marine flange bearings today and save hundreds to thousands of dollars.

Due to fluctuations in the cost of metals, all flange bearings are priced on request and subject to availability. Flange Bearings may not be returned without prior approval and all orders are subject to a cancellation fee.

View as
Sort by
Display per page
Product(s)Shaft SizeOutside DiameterLengthFlange DiameterFlange ThicknessPrice
Johnson 2 inch x 3 inch BRACE Flanged BearingPicture of Johnson 2 inch x 3 inch BRACE Flanged Bearing2 inch3 inch8 inch5 inch3/8 inch
N/A
Johnson 2 1/2 inch x 3 3/8 inch BROAD Flanged BearingPicture of Johnson 2 1/2 inch x 3 3/8 inch BROAD Flanged Bearing2-1/2 inch3-3/8 inch10 inch5-1/2 inch3/8 inch
N/A
Johnson 3 inch x 4 1/4 inch CATCH Flanged BearingPicture of Johnson 3 inch x 4 1/4 inch CATCH Flanged Bearing3 inch4-1/4 inch12 inch6-3/4 inch1/2 inch
N/A
Johnson 3 1/4 inch x 4 1/2 inch CLAMP Flanged BearingPicture of Johnson 3 1/4 inch x 4 1/2 inch CLAMP Flanged Bearing3-1/4 inch4-1/2 inch13 inch7 inch1/2 inch
N/A
Johnson 3 1/2 inch x 4 3/4 inch CRANK Flanged BearingPicture of Johnson 3 1/2 inch x 4 3/4 inch CRANK Flanged Bearing3-1/2 inch4-3/4 inch12-1/2 inch6-3/4 inch1/2 inch
N/A
Johnson 3 1/2 inch x 4 7/8 inch CLEAR Flanged BearingPicture of Johnson 3 1/2 inch x 4 7/8 inch CLEAR Flanged Bearing3-1/2 inch4-7/8 inch14 inch7-3/8 inch1/2 inch
N/A
Johnson 3 3/4 inch x 5 1/4 inch CIVIL Flanged BearingPicture of Johnson 3 3/4 inch x 5 1/4 inch CIVIL Flanged Bearing3-3/4 inch5-1/4 inch15 inch7-3/4 inch1/2 inch
N/A
Johnson 4 inch x 5 1/2 inch DRAFT Flanged BearingPicture of Johnson 4 inch x 5 1/2 inch DRAFT Flanged Bearing4 inch5-1/2 inch16 inch8 inch1/2 inch
N/A
Johnson 4 1/4 inch x 5 3/4 inch DREAD Flanged BearingPicture of Johnson 4 1/4 inch x 5 3/4 inch DREAD Flanged Bearing4-1/4 inch5-3/4 inch17 inch8-1/4 inch1/2 inch
N/A
Johnson 4 3/8 inch x 6 inch DANCE Flanged BearingPicture of Johnson 4 3/8 inch x 6 inch DANCE Flanged Bearing4-3/8 inch6 inch22 inch8-7/8 inch1/2 inch
N/A
Johnson 4 1/2 inch x 6 inch DRINK Flanged BearingPicture of Johnson 4 1/2 inch x 6 inch DRINK Flanged Bearing4-1/2 inch6 inch18 inch8-7/8 inch1/2 inch
N/A
Johnson 4 3/4 inch x 6 1/4 inch DROVE Flanged BearingPicture of Johnson 4 3/4 inch x 6 1/4 inch DROVE Flanged Bearing4-3/4 inch6-1/4 inch19 inch9-1/8 inch1/2 inch
N/A
Johnson 5 inch x 6 3/4 inch EARTH Flanged BearingPicture of Johnson 5 inch x 6 3/4 inch EARTH Flanged Bearing5 inch6-3/4 inch20 inch9-5/8 inch9/16 inch
N/A
Johnson 5 1/4 inch x 6 7/8 inch EASEL Flanged BearingPicture of Johnson 5 1/4 inch x 6 7/8 inch EASEL Flanged Bearing5-1/4 inch6-7/8 inch21 inch9-7/8 inch9/16 inch
N/A
Johnson 5 1/2 inch x 7 1/4 inch ERASE Flanged BearingPicture of Johnson 5 1/2 inch x 7 1/4 inch ERASE Flanged Bearing5-1/2 inch7-1/4 inch22 inch10-1/4 inch9/16 inch
N/A
Johnson 5 3/4 inch x 7 1/4 inch EVENT Flanged BearingPicture of Johnson 5 3/4 inch x 7 1/4 inch EVENT Flanged Bearing5-3/4 inch7-1/4 inch23 inch10-1/4 inch9/16 inch
N/A
Johnson 6 inch x 7 3/4 inch FABLE Flanged BearingPicture of Johnson 6 inch x 7 3/4 inch FABLE Flanged Bearing6 inch7-3/4 inch15 inch12-1/4 inch9/16 inch
N/A
Johnson 6 inch x 7 3/4 inch FAULT Flanged BearingPicture of Johnson 6 inch x 7 3/4 inch FAULT Flanged Bearing6 inch7-3/4 inch24 inch11 inch9/16 inch
N/A
Johnson 6 1/4 inch x 8 inch FENCE Flanged BearingPicture of Johnson 6 1/4 inch x 8 inch FENCE Flanged Bearing6-1/4 inch8 inch22-1/2 inch10-5/8 inch9/16 inch
N/A
Johnson 6 1/2 inch x 8 3/8 inch FLARE Flanged BearingPicture of Johnson 6 1/2 inch x 8 3/8 inch FLARE Flanged Bearing6-1/2 inch8-3/8 inch23-1/2 inch11 inch9/16 inch
N/A
Johnson 6 1/2 inch x 8 3/8 inch FLEET Flanged BearingPicture of Johnson 6 1/2 inch x 8 3/8 inch FLEET Flanged Bearing6-1/2 inch8-3/8 inch30 inch11 inch5/8 inch
N/A
