Home » 50400YS100 Split Buck Algonquin Marine Motor Coupling
50400YS100 Split Buck Algonquin Marine Motor Coupling - Deep Blue Yacht Supply
50400YS100 Split Buck Algonquin Marine Motor Coupling - Deep Blue Yacht Supply
Buck Algonquin

50400YS100 Split Buck Algonquin Marine Motor Coupling

In stock
(1)

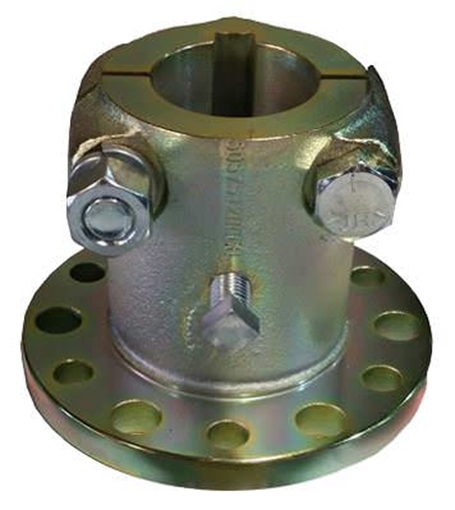

50400YS100 Split Buck Algonquin Marine Motor Coupling

  • Manufacturer Part Number 50400YS100
  • Shaft Size 1 inch
  • Flange Diameter 4 inch
  • Overall Length 2 inch
  • Transmission Yanmar
  • Coupling Split
  • Number Of Bolts 4
  • Bolt Diameter 10 mm
  • Bolt Circle 3.070 inch
  • Pilot 1.966 inch x 5/32 inch Male
$117.99
$167.39 $117.99

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Low Price Leader on all Transmission Marine Couplings. Largest inventory of Transmission Marine Couplings, save big on all Transmission Marine Couplings.

Model Number: 50400YS100

Transmission Type: Yanmar

Coupling Type: Split

Shaft Size: 1 inch

Flange Diameter: 4 inch

Number of Bolts: 4

Bolt Diameter: 10 mm

Bolt Circle: 3.070 inch

Pilot: 1.966 inch x 5/32 inch Male

Overall Length: 2 inch

Buy your Buck Algonquin 50400YS100 Split Buck Algonquin Marine Motor Coupling at Deep Blue and save big. Buck Algonquin is the worldwide leader in supplying the best marine hardware products. All Buck Algonquin 50400YS100 Split Buck Algonquin Marine Motor Coupling are made in the U.S.A.

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
100%
(1)
0%
(0)
R
Robert Scott

Because I installed the new coupling without safety wire on the set screw, the set screw backed out causing the shaft to move aft and become disconnected from the coupling. The reason I assembled without safety wired was that the set screw did not have a hole drilled in the head. I re-assembled with application of Lok Tite to the set screw threads. It continues to hold, but I am not yet confident that screw tightness will continue. The problem is not caused by poor alinement of the shaft to the transmission. It is clear to me that Buck Algonquin should manufacture with a safety wired holes in the setscrew and another of the coupling screws so that safety wire can be attached.
